// Air Compressors
High Pressure Reciprocating Compressor
ISO 9001:2015
Our high-pressure reciprocating compressors are engineered for applications requiring pressures far above standard industrial levels. Multi-stage compression with intercooling and aftercooling ensures efficient, reliable operation at extreme pressures. Supplied with safety relief valves and pressure vessels per statutory requirements.
//
Technical Specifications
Working Pressure2–45 BAR
Free Air Delivery3.76–148.5 CFM
Motor Power3–50 HP
StagesMulti-Stage
CoolingAir / Water Cooled
CertificationISO 9001:2015
Full catalogue → Document Library
//
Typical Applications
›PET bottle blowing
›Hydraulic pressure testing
›Gas boosting
›Defence & navy
›Oil & gas
›CNG stations
//

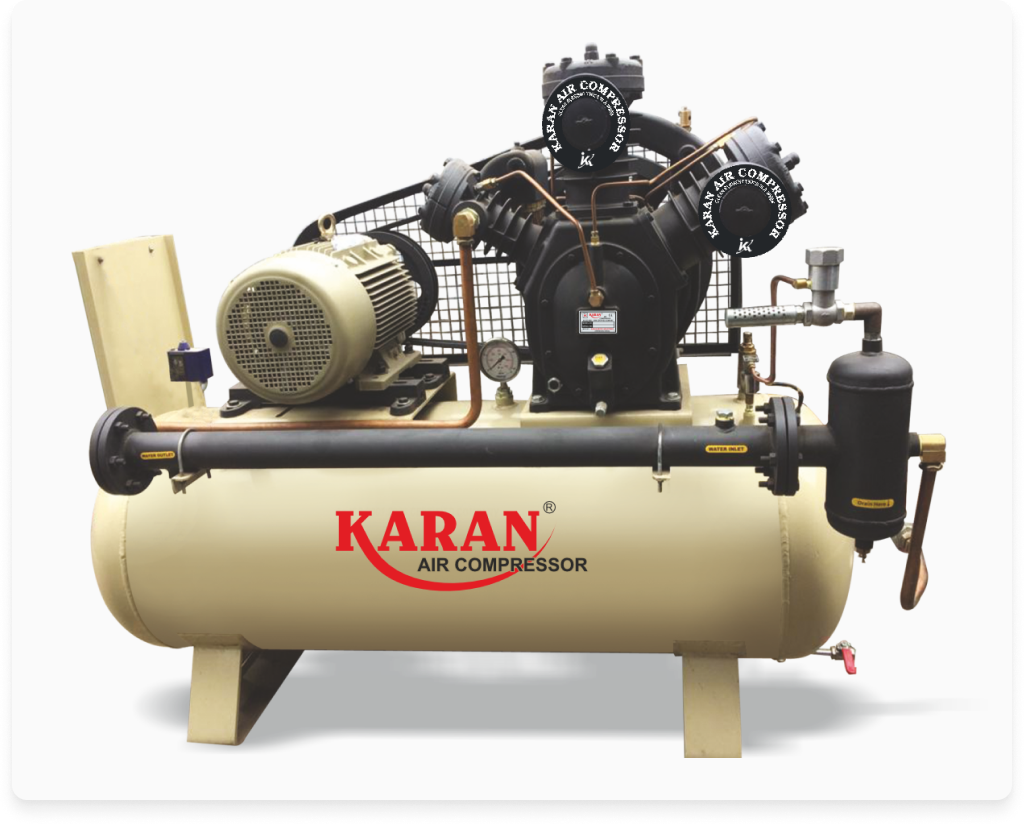

Multi-Stage High-Pressure Reciprocating Compressor
| Model | HP | KW | Cylinders | PD (CFM) | FAD (CFM) | PSIG | kg/cm² | Air Receiver (L) |
|---|---|---|---|---|---|---|---|---|
| KC 731 | 3 | 2.2 | 2 | 7.40 | 4.80 | 500 | 35.15 | 160 |
| KC 731 | 5 | 3.7 | 2 | 10.80 | 6.80 | 500 | 35.15 | 200 |
| KC 771T2 | 10 | 7.5 | 2 | 32.33 | 19.70 | 500 | 35.15 | 300 |
| KC 771T2 | 12.5 | 9.3 | 2 | 36.00 | 21.60 | 500 | 35.15 | 300 |
| KC 715TH | 15 | 11 | 3 | 48.60 | 31.41 | 370 | 35.15 | 500 |
| KC 715T2 | 15 | 11 | 3 | 41.25 | 37.70 | 500 | 35.15 | 500 |
| KC 715TH | 20 | 15 | 3 | 65.42 | 41.10 | 370 | 25.80 | 500 |
| KC 715T2 | 20 | 15 | 3 | 49.50 | 54.00 | 500 | 35.15 | 500 |
| KC 725TH | 25 | 18.6 | 3 | 88.30 | 74.00 | 370 | 25.80 | 500 |
| KC 715DP1 | 20+20 | 29.8 | 3+3 | 126.40 | 108.00 | 370 | 25.80 | 500 |
| KC 715DP2 | 25+25 | 37.2 | 3+3 | 176.00 | 148.00 | 370 | 25.80 | 500 |
//
Related Products

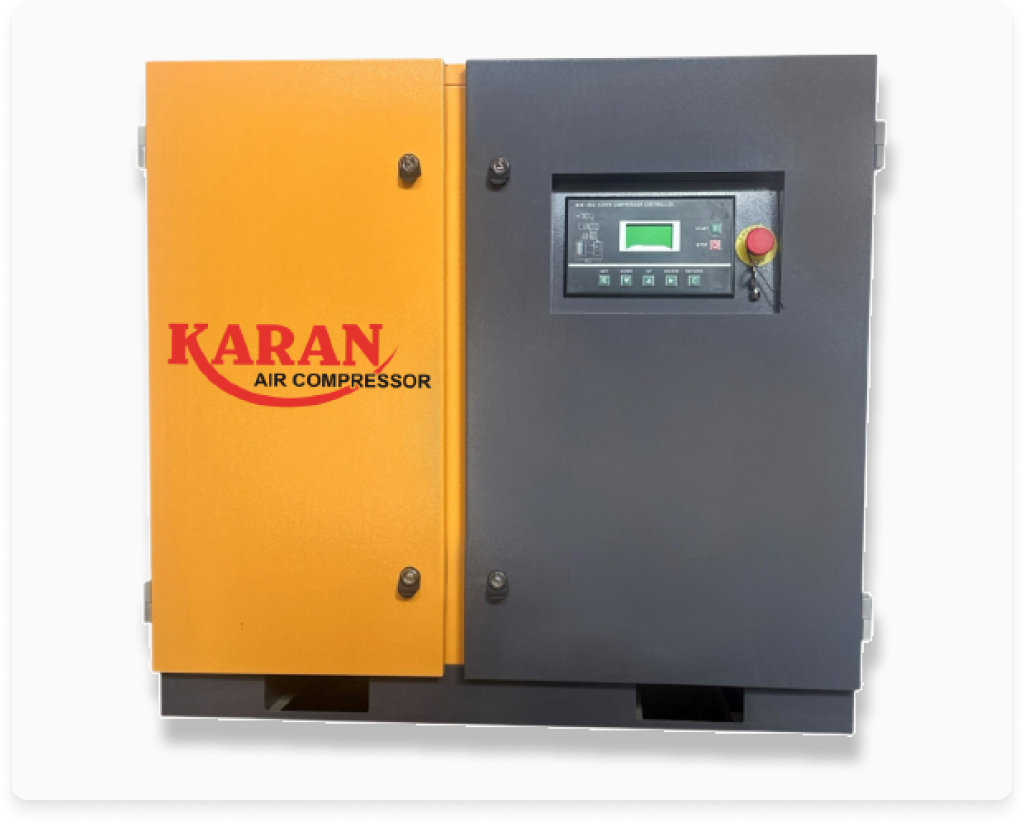

Single Stage Rotary Screw Compressor
High-efficiency single-stage screw compressors available in VFD, fixed drive and high pressure variants.
Two Stage Rotary Screw Compressor
Two-stage screw compressors with VFD option for higher efficiency at elevated pressures.

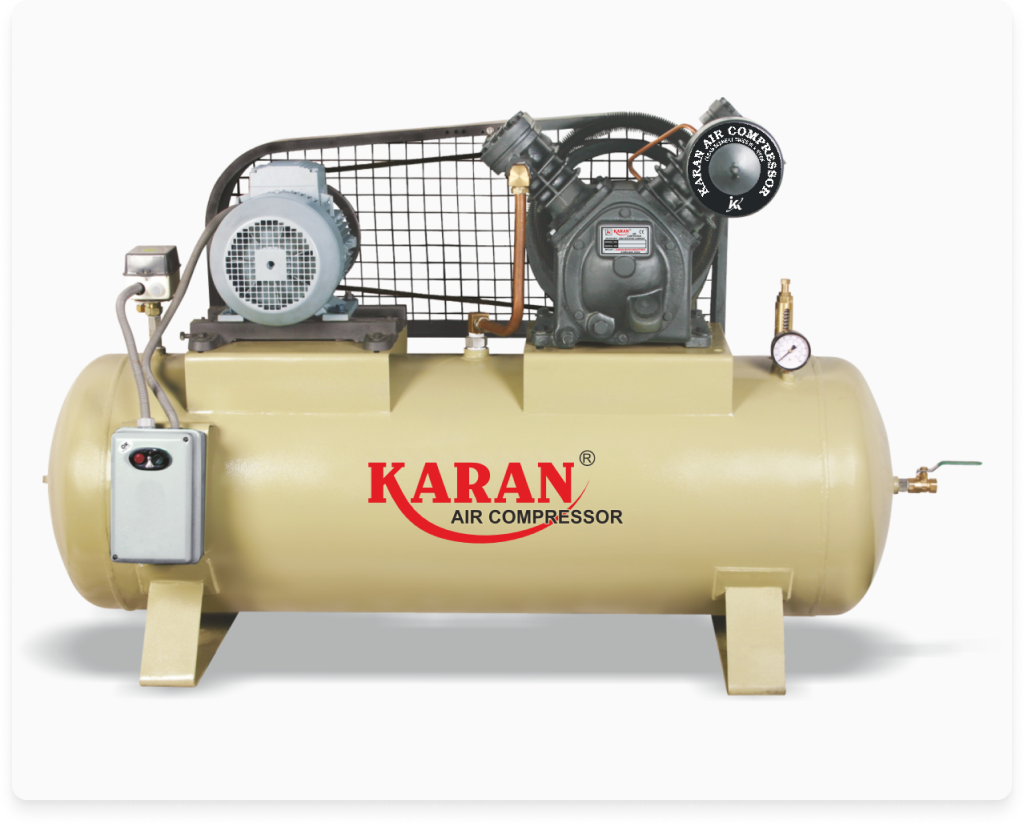

Single Stage Reciprocating Compressor
